Feature

Hide Outlines

🪄 Hide Outlines: Clean Up Your Images and Scans

PhenoCapture AI’s Hide Outlines tool is designed to seamlessly remove unwanted borders, grid lines, or edge artifacts from your images. Whether you are cleaning up a scanned document, removing thick boundary lines from a graphic design, or simply blending harsh edges into the background, this tool makes it incredibly easy to achieve a clean, professional look.

By smartly replacing outline pixels with surrounding colors—and progressively eroding thicker borders through customizable repeat passes—you can rescue imperfect images with just a few clicks.

💡 Key Features

  • Smart Color Blending: Choose how outlines are filled by either letting the software automatically detect and apply the “Most Frequent Color” from surrounding pixels for a crisp, natural fill, or using the “Average Color” mode for a softer transition.
  • Multi-Pass Thickness Control (Repeat Count): Dealing with thick or heavy borders? Simply increase the Repeat Count to progressively peel away multi-pixel outlines layer by layer in a single operation.
  • Custom Target Color Selection: Easily specify the exact outline color you want to remove using precise RGB values, quick presets (like White, Black, Red, etc.), or the intuitive visual Color Picker tool.
  • Flawless Edges: The tool features an advanced, built-in anti-aliasing and dithering prevention system. This ensures that your outlines are removed cleanly without leaving behind blurry, smudged, or mixed pixels—even when you are zoomed out.
  • Real-Time Preview: See exactly how your image will look before applying any changes. The live preview engine updates instantly on your canvas as you tweak colors, modes, and repeat counts.
  • Targeted Editing (Mask Support): You do not have to apply the effect to the whole picture. Use the selection tools to isolate specific areas, ensuring that only the outlines within your chosen region are hidden while the rest of the image remains untouched.

🛠️ How to Use the Tool

Removing distracting outlines—whether thin or thick—is a quick and straightforward process:

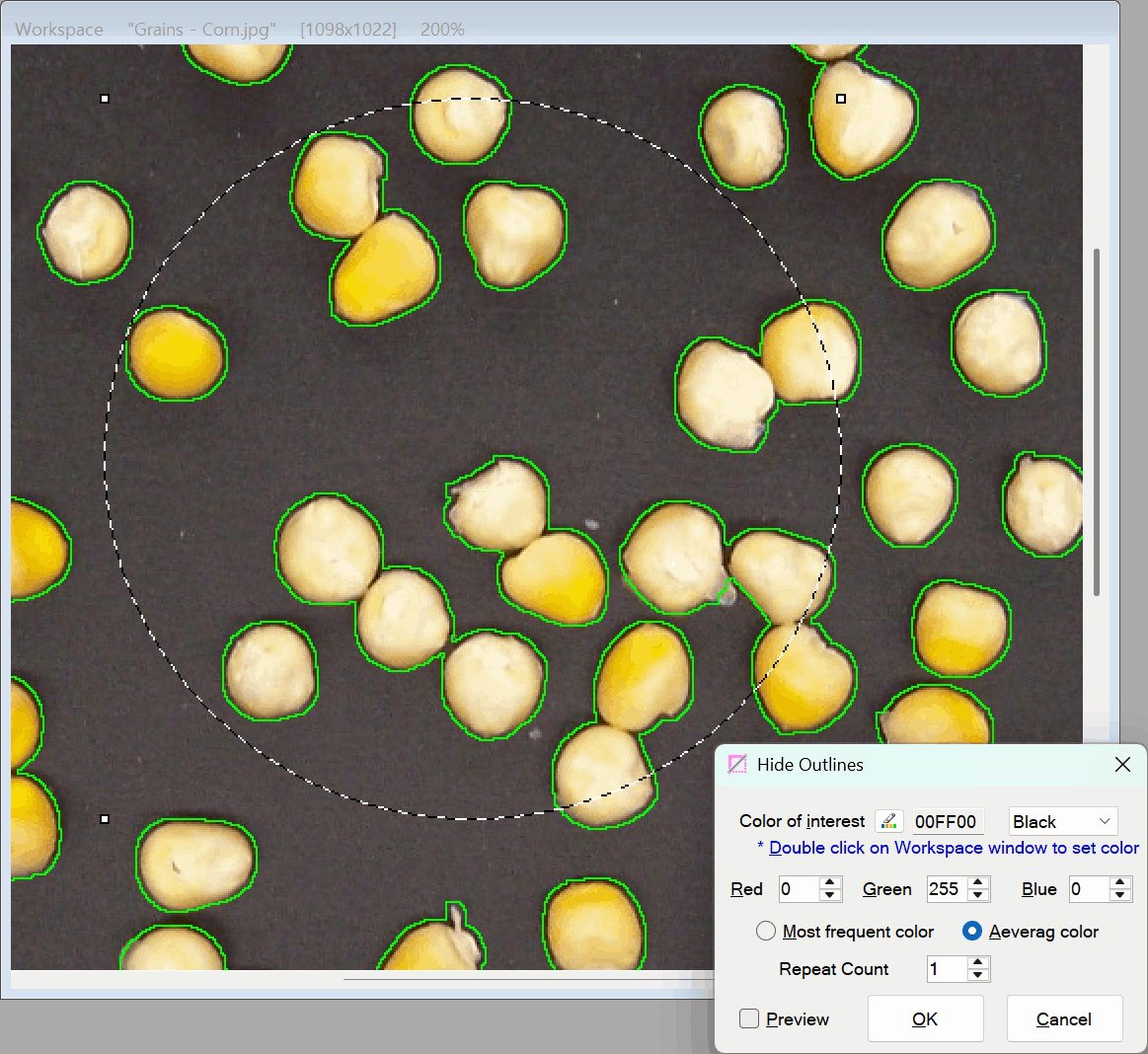

Step 1: Pick Your Target Outline Color

Open the Hide Outlines tool and specify the color of the outline you want to remove. Use the RGB number boxes, select a quick preset from the dropdown, or click the Color Picker icon to sample the exact border color. Ensure the Preview box is checked so you can watch the outlines vanish in real-time.

Step 2: Select the Replacement Algorithm

Decide how the software should fill in the hidden outline pixels. Select Most Frequent Color to seamlessly replace borders with the dominant surrounding color, or choose the Average Color option to blend neighboring pixels smoothly.

Step 3: Adjust the Repeat Count for Thick Lines

If your image has thick borders that aren’t completely hidden in a single pass, increase the Repeat Count value. Each increment performs an additional pass from the outside in, effortlessly erasing wider lines and heavy contours.

Step 4: Apply the Changes

Once the outlines are completely hidden and your image looks clean and polished in the live preview, simply click the OK button. The unwanted lines will be seamlessly removed!

With the enhanced Hide Outlines tool, removing both delicate edges and stubborn, thick borders has never been easier. Enjoy a smoother, more refined editing experience!
